Annke Vision - How to Access DVR/NVR System on The Web Browser from PC(in the Same Local Network)?

Applies to:
DT41Y/DT61Y/DT81Y/DN41R/DN61R/DN81R/DT41GB/DT81GB/DT61GB/DW41JD/DW81KD/DW61LD/DT81DP/N48PI/N44PI/N46PI/N44PAM/N48PAW/N46PCK/N88PCH/N48PBB/FC200/NCK800/H800/H500/NCK400/NAK500

Note:

Safari browser is not supported.

The following browsers are supported:
IE 10, IE 11, Chrome 57.0+, Firefox 52.0+ and Edge 89+

Our device plugin is most compatible with IE 10 and IE 11 browsers. In IE browser we can view the device and modify the relevant settings more smoothly.

For Chrome 57.0+, Firefox 52.0+ and Edge 89+ browsers, we can view the device without the plugin. But please note that we still need to download the plugin if we want to change the relevant device settings from them.

(Here is an image for your reference to download the plugin)

General steps:

1. Plug the DVR/NVR into a router with a network cable.

2. Find DVR/NVR's IP address.  There are two ways to find the IP address:

Method #1

1) Find the IP address on the TV/monitor.

Please go to Menu--Configuration--Network--General.

Method #2

Find the IP address on a computer.

1) Video guide:

2) Text guide:

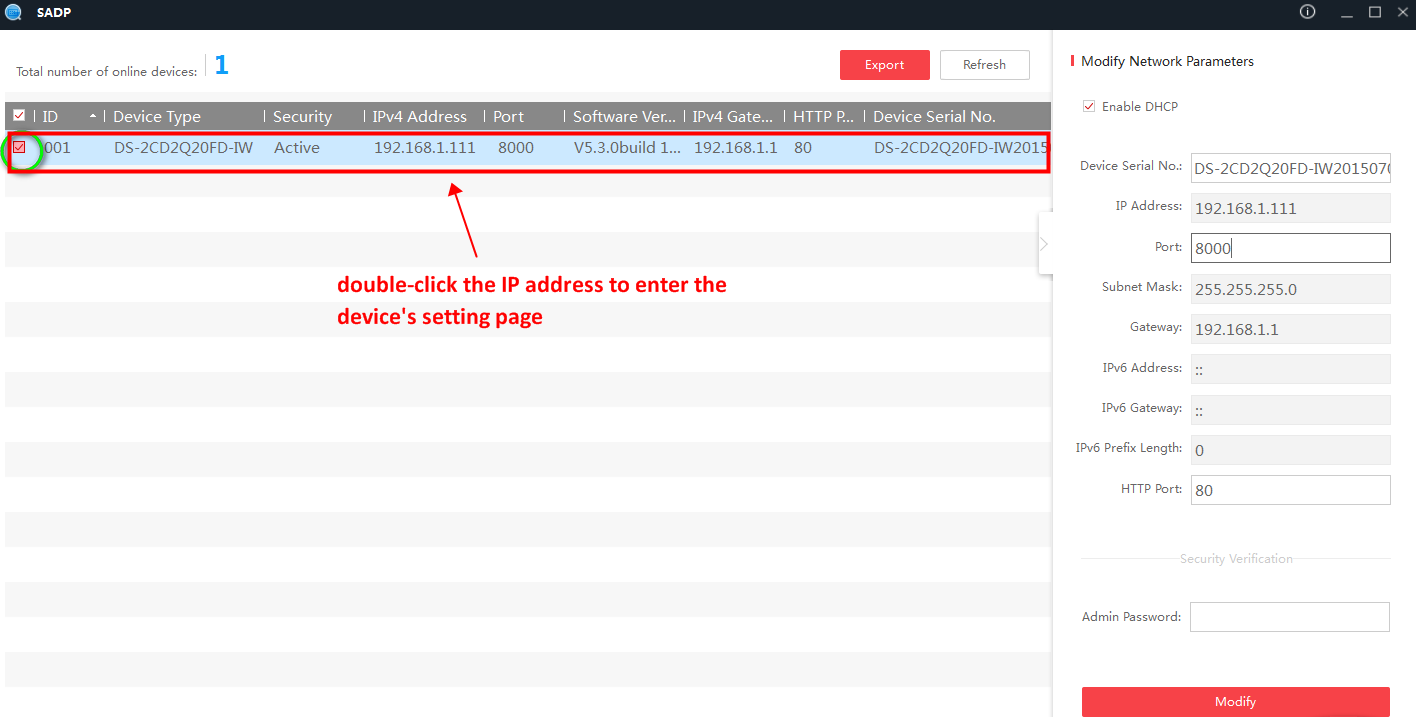

Please download and install the software SADPTool from this link:
For Windows computers: https://download.annke.com/document/Computer_Software/SADPToolV3.0.3.3.zip
For Mac computers:
http://support.annke.com/document/HK/general/sadptool.pkg_.zip

Please connect your computer to the same network/router of the DVR/NVR, then run this software. It will detect the DVR/NVR's IP address automatically.



3. Get a computer that is connected to the same router as NVR is to access NVR with its IP on the browser. The user name is admin and the password is your system's password.

3.1. We suggest using the IE browser instead of other browsers because we only have the web plug-in for the IE web browser now.



Note:

If you can not see the image of the cameras, the image may be encrypted. Please go to the system to disable it. Please go to Menu--Configuration--Network--General.
