Purpose: The instruction of how to install a hard disk drive.
Before you start: Before installing the hard drive disk, please power off the system.
Steps:
1. Loose the five screws, which are fixing the box cover.

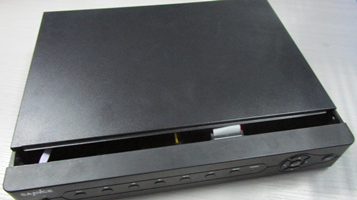

2. Push forward the cover to the end and remove it.
3. Connect the hard drive to the DVR System

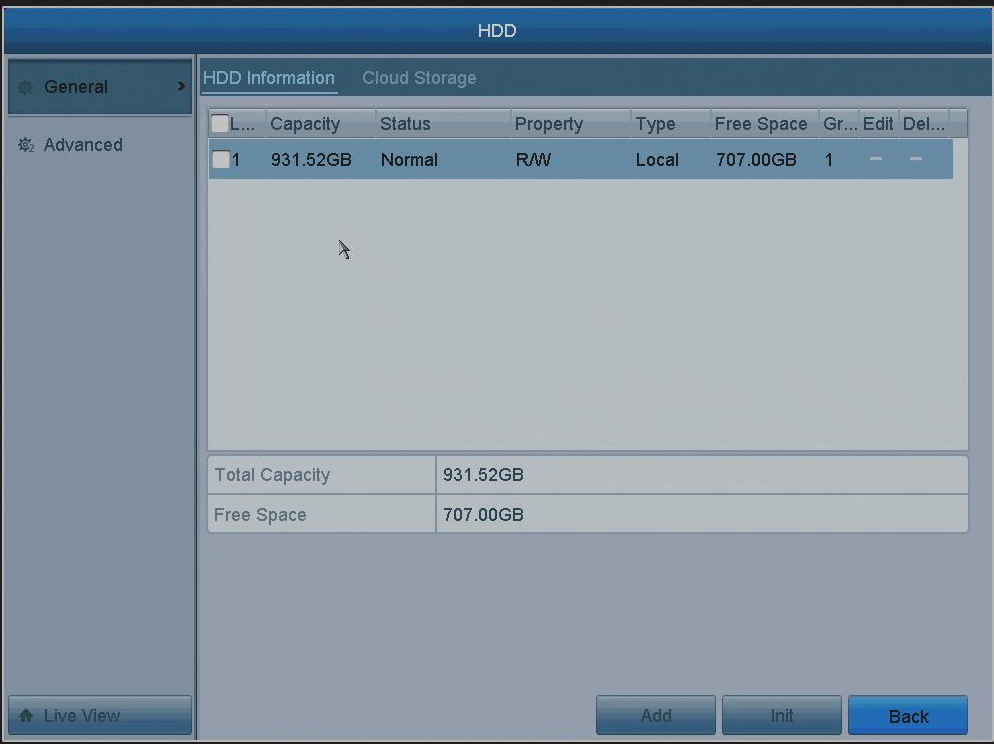

4. Turn on the DVR and check if it detects the hard drive.
Then, power off the system.
Note: Different Models have different settings interfaces.
5. Fix the hard drive inside the box.
6. Put screws on to fix the hard drive inside the box.
7. Put the cover back to position and install the screws.
8. Please format the HDD when you are the first time to use the HDD.
Please refer to the link to format the HDD: https://help.annke.com/hc/en-us/articles/360000480281
