Snapshot URL for C500

Follow

Karsten Kirchhof

• June 21, 2021 15:39

How poll snapshot via URL from C500?

0

•

  Support Team

  • June 22, 2021 01:32

  Hello there,

  Could you please tell us what kind of URL you need?

  If you want to capture the image of the camera, please kindly refer to the below link:https://help.annke.com/hc/en-us/articles/900002373043

  0

  Comment actions Permalink
•

  Karsten Kirchhof

  • June 22, 2021 05:39

  sth like:

  http.// IP-adress/snapshot/jpeg?/stream1


  to get a snapshot in main stream resolution

  0

  Comment actions Permalink
•

  Damien

  • April 13, 2022 19:42

  I spent some time trying to get snapshot url, trying any options but was not working with C500 / I51DM, got xml saying "Device busy".

  To get this working I had to upgrade firmware to HIK version IPC_E7S_EN_STD_5.5.800_210816 using SDK ClientDemoEn.exe.

  I can now see a jpg snapshot using this url on firefox : http://login:pass@ip/ISAPI/Streaming/channels/101/picture

  0

  Comment actions Permalink
•

  Ed

  • September 24, 2023 14:36
  • Edited

  Our of interest what firmware were you on BEFORE changing firmware?

  I am trying to add the camera to home assistant and its saying ONVIF is disabled.

  My c500's are on firmware: V5.7.2 build 221202

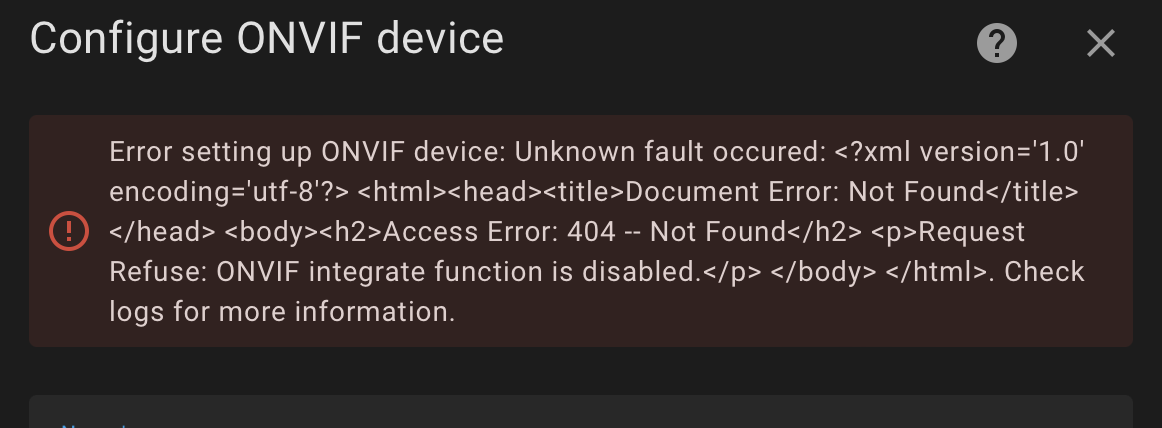

  When adding them to home assistant I get this message:

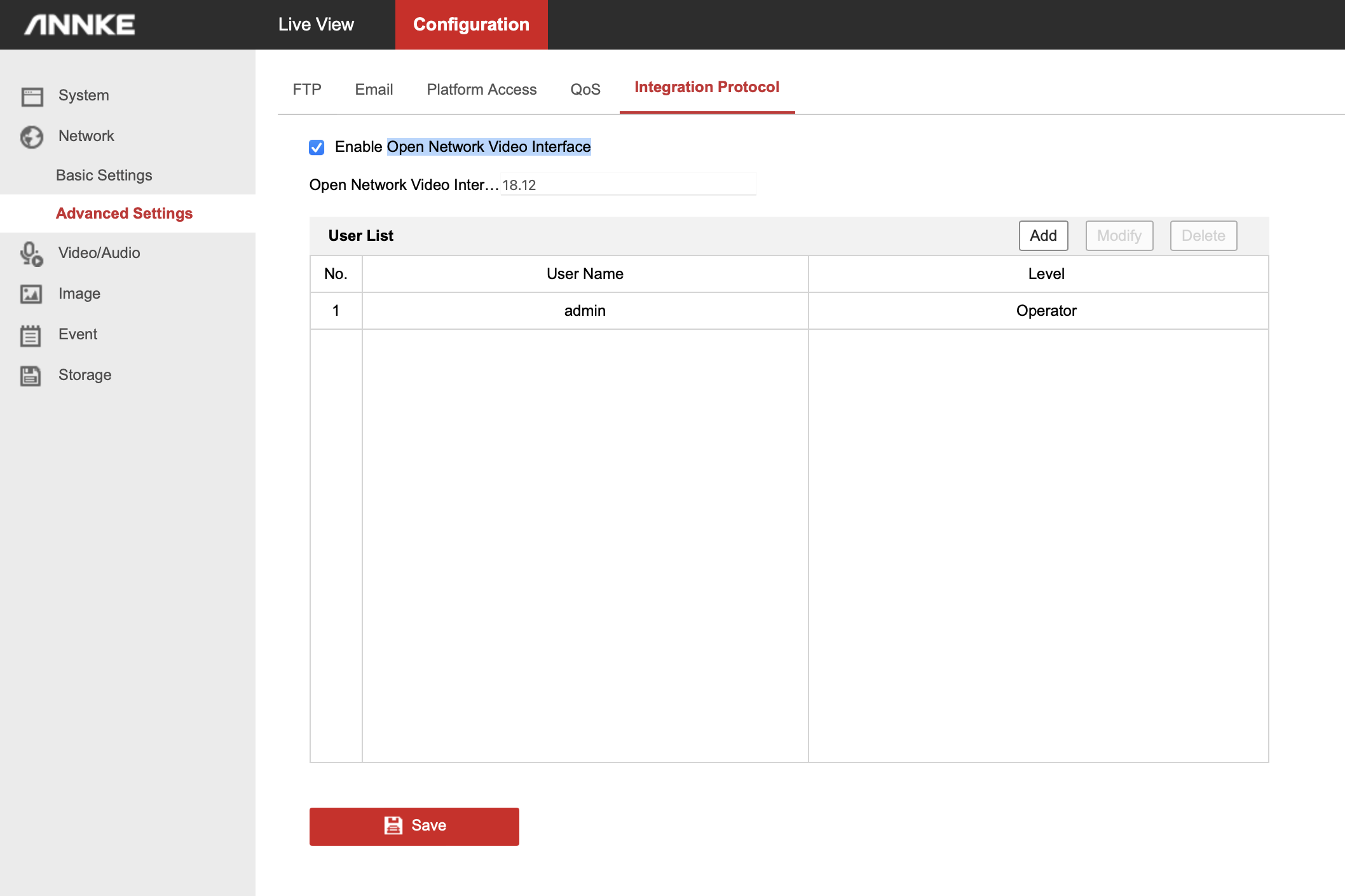

  Then logged onto the IP of the camera itself & under:

  Network: -> Advanced: -> Integration Protocol: -> Enable (ONVIP = Open Network Video Interface Protocol) -> add user & password: -> Save



  0

  Comment actions Permalink
•

  Enrique Ramirez

  • February 23, 2024 19:30

  Hello, I got a new C500 and have the same issue. What would be a valid snapshot URL and the firmware version?

  I have tried many different and do not work:


  snapshot.jpg?user=[USERNAME]&pwd=[PASSWORD]

  snapshot.jpg?user=[USERNAME]&pwd=[PASSWORD]&strm=[CHANNEL]

  and do not work...

  0
