Annke Vision - How to Set up Email Alert? (S500)

Applies to:
DW41JD/DW81KD/DW61LD/S500/S300/FC200

Purpose:

You could set up an email alert to receive the motion notification.

Here are the steps:

1. Please use the Gmail address, not Yahoo nor Hotmail.

2. Check system P2P status and make sure it is online.  Log into the Annke DVR/NVR system, go to Menu-->Network-->ANNKE Vision. Make sure the status is 'Online'.
   Note: If the status is 'Offline,' please refer to this instruction to make it online at first:
   What to do if P2P status shows offline? (DW81KD New Series)

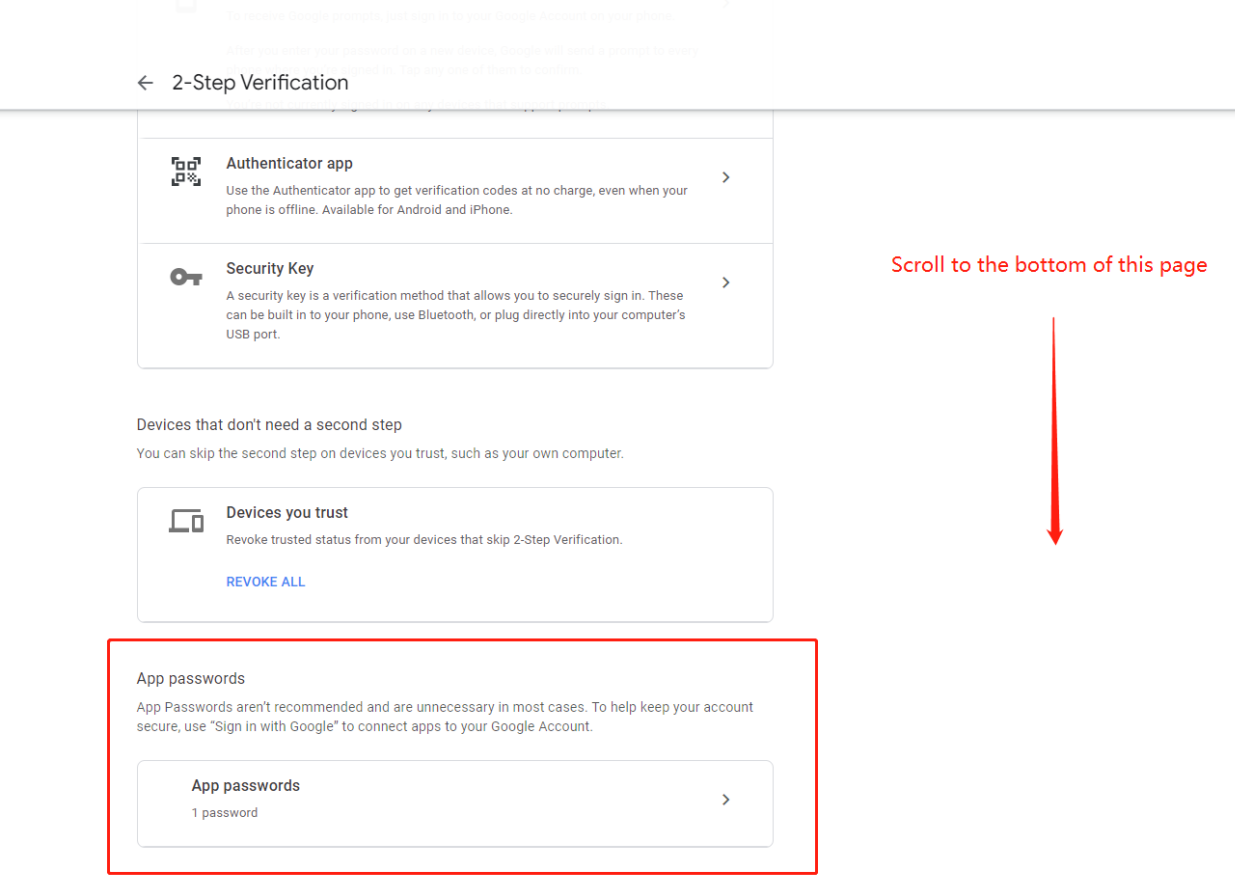

3. Log in Google account, go to 'Security', then turn on '2-Step Verification'. Click on 'App Password' to create your App Password (16 digits).











4. Go to the Setting--Network--Email and Set up an email alert like the picture below.

   The SMTP server is smtp.gmail.com

   The user name is your Gmail account

   The password is your App password (16 digits) from Google


   SMTP port is 587 or 465

   Tick the SSL/TLS

   Tick the Attached Picture

   The sender can be any name

   The sender‘s address is your Gmail address

   The receiver can be any name

   The receiver‘s address can be your Gmail address or any email address you want to receive the email notification

   Tick Apply



5. Go to Menu-->Camera-->Smart Event to enable motion detection and Notify Surveillance Center. Then you will receive a notification via email when there is motion detection on the system.




   If you still can not receive the notification, please contact support@annke.com.
