How to Mount the PTZ Camera on a Vertical Wall or under Ceiling?

Applies to:  I51CK

Purpose:

The ANNKE PTZ camera model I51CK can be mounted either on a vertical wall or under ceiling. Below are the steps:

Mount on a vertical wall:

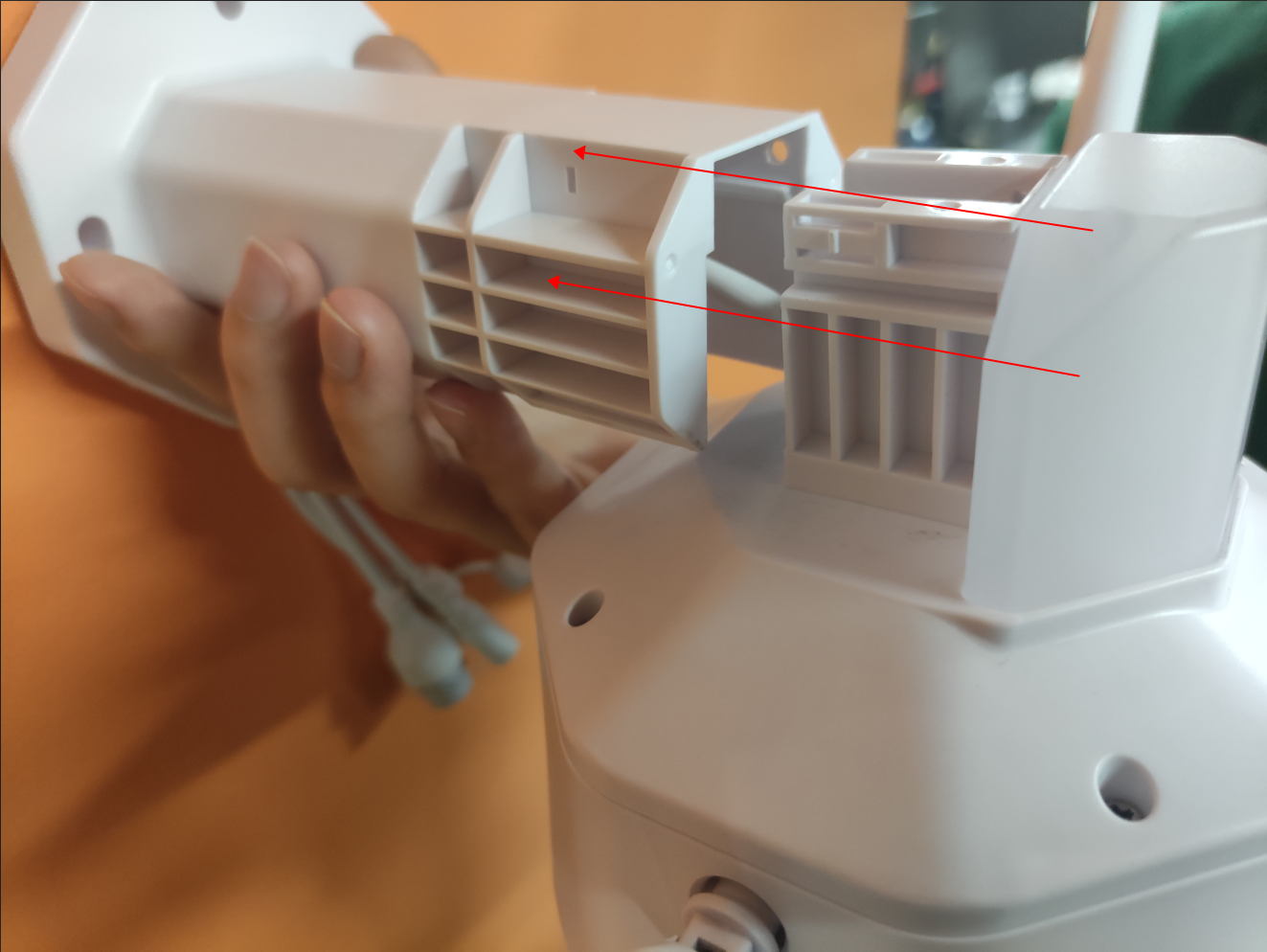

1. Face the mounting bracket down, then push the camera into the bracket as below picture.

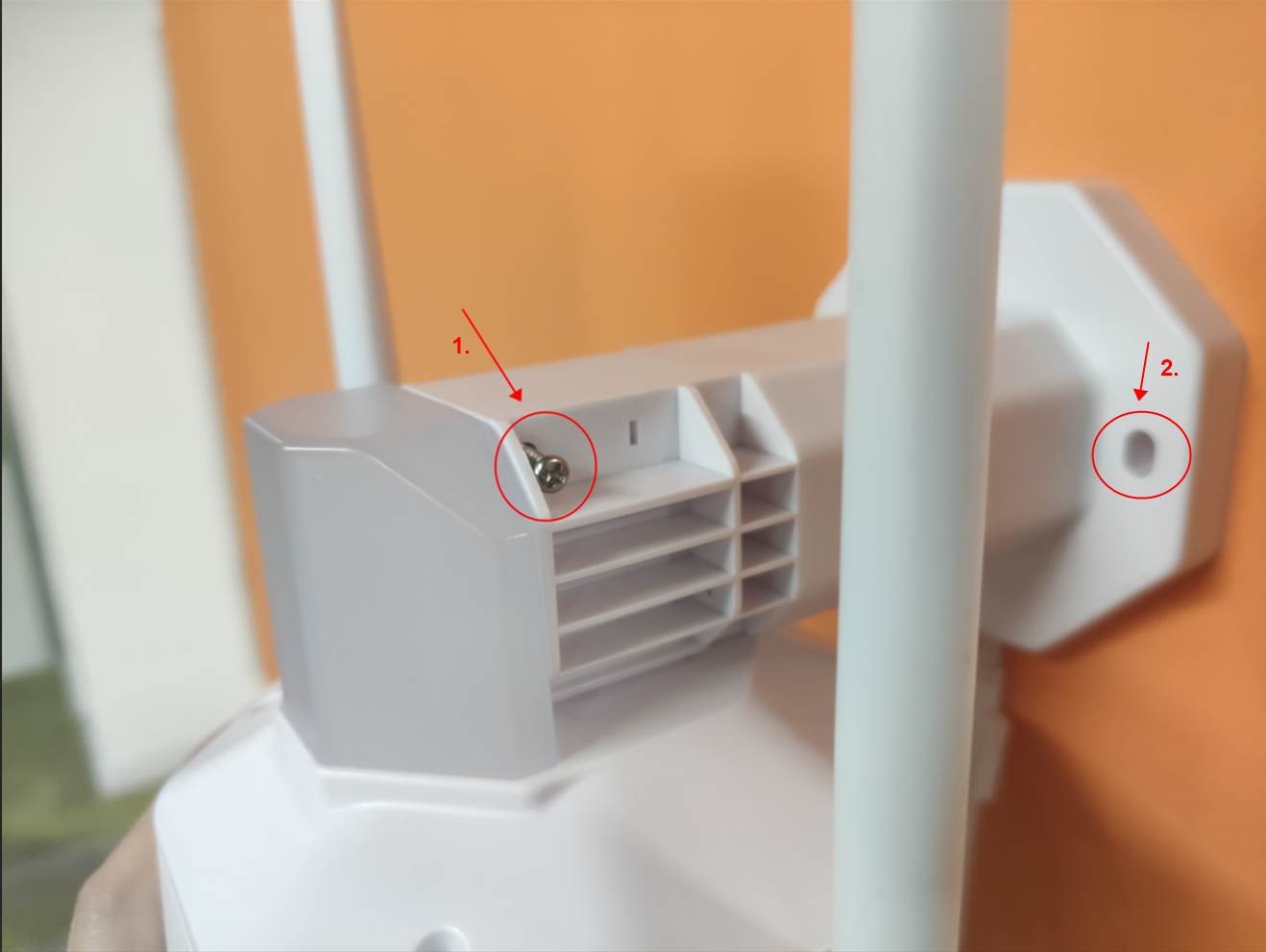

2. Fix the camera to the bracket by a screw, then fix the bracket to wall by screws, too.

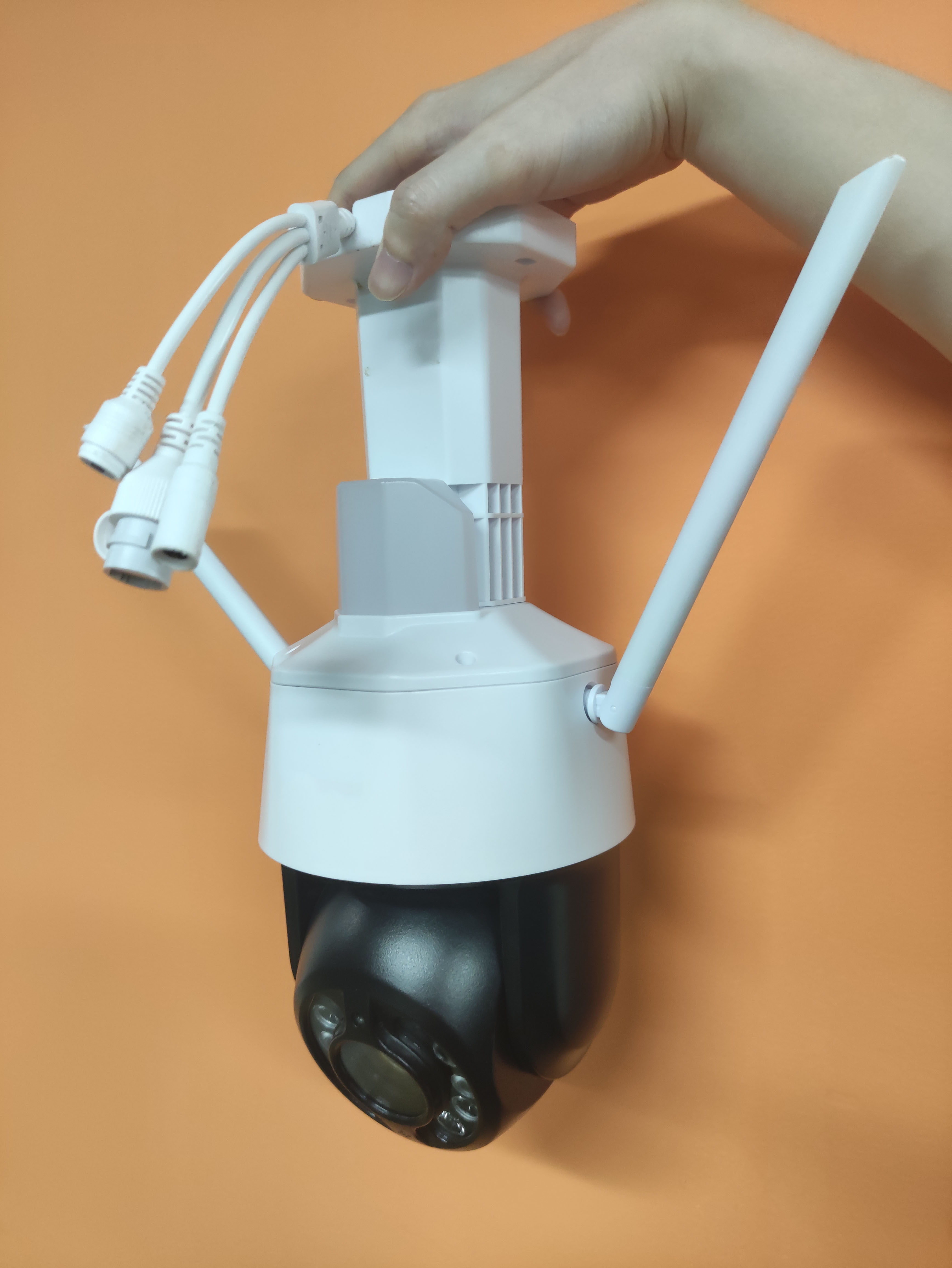

Mount under ceiling:

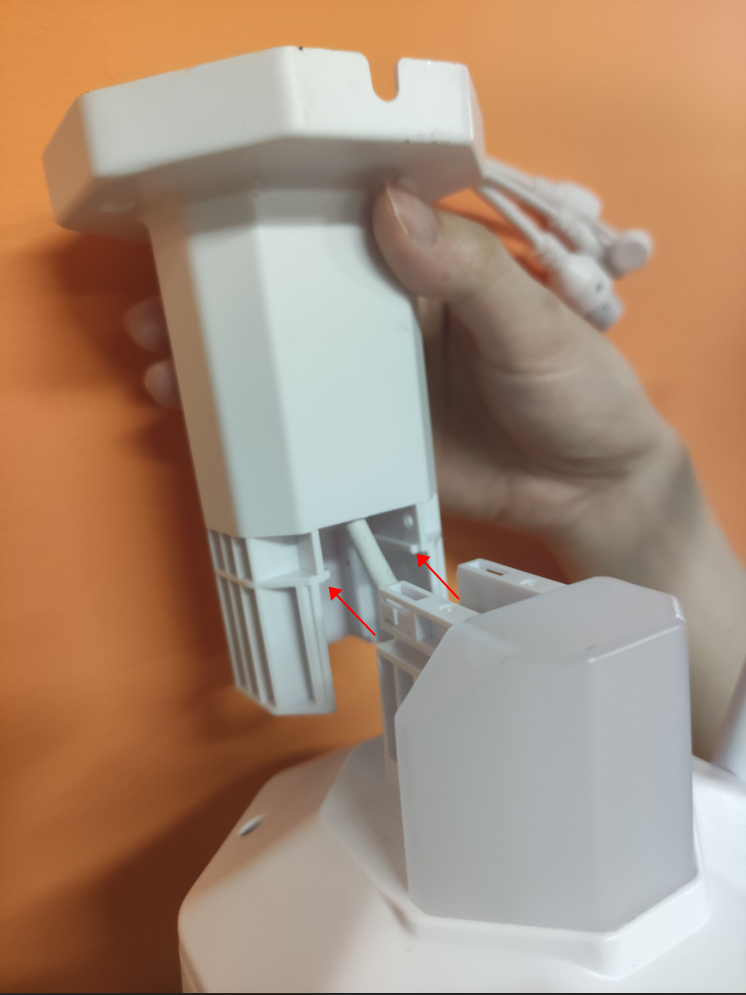

1. Face the mounting bracket front, then push the camera into the bracket as below picture.

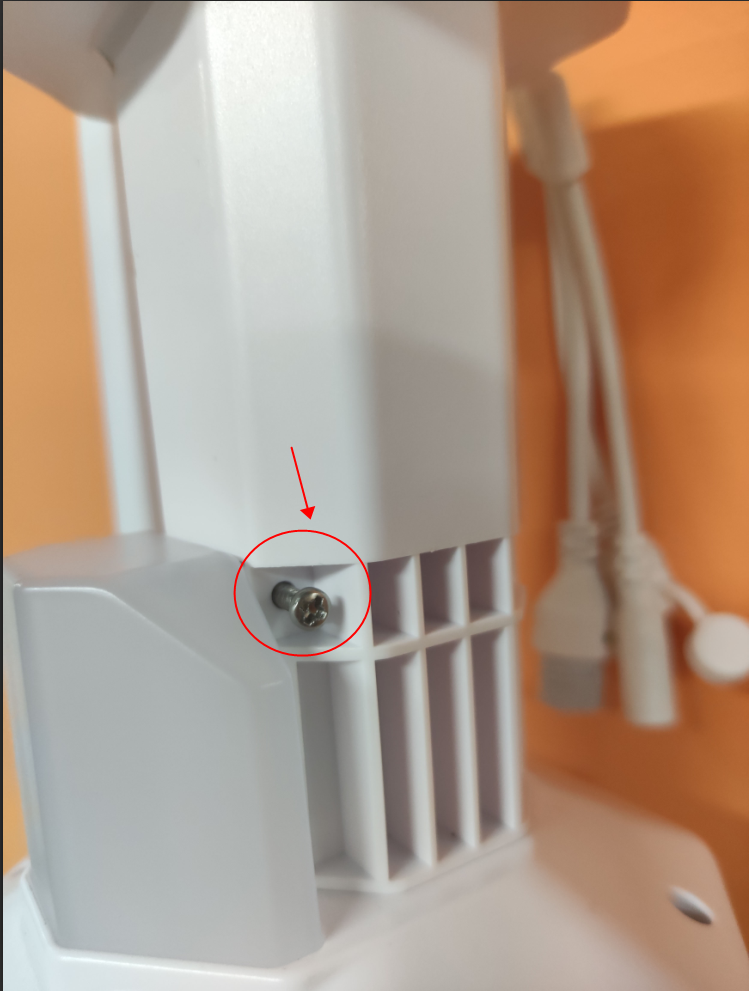

2. Fix the camera to the bracket by a screw, then fix the bracket to wall by screws, too.

Notice:

For any other questions, please feel free to contact ANNKE technical support at support@annke.com by email.
