Annke Vision-The Introduction of The Different Light Modes of Smart Dual Light Analog Camera.

Applies to:  CR1CV/CR1CX/CR1CW/CT1GT/CT1GU/

Purpose: Help customers understand the meaning of three supplement light modes



Note:
1) This is only for the smart dual-light analog camera.

2) The smart light mode only can work with the DVR supporting human and vehicle detection.

3) Please access the OSD interface of the camera to adjust the light mode.

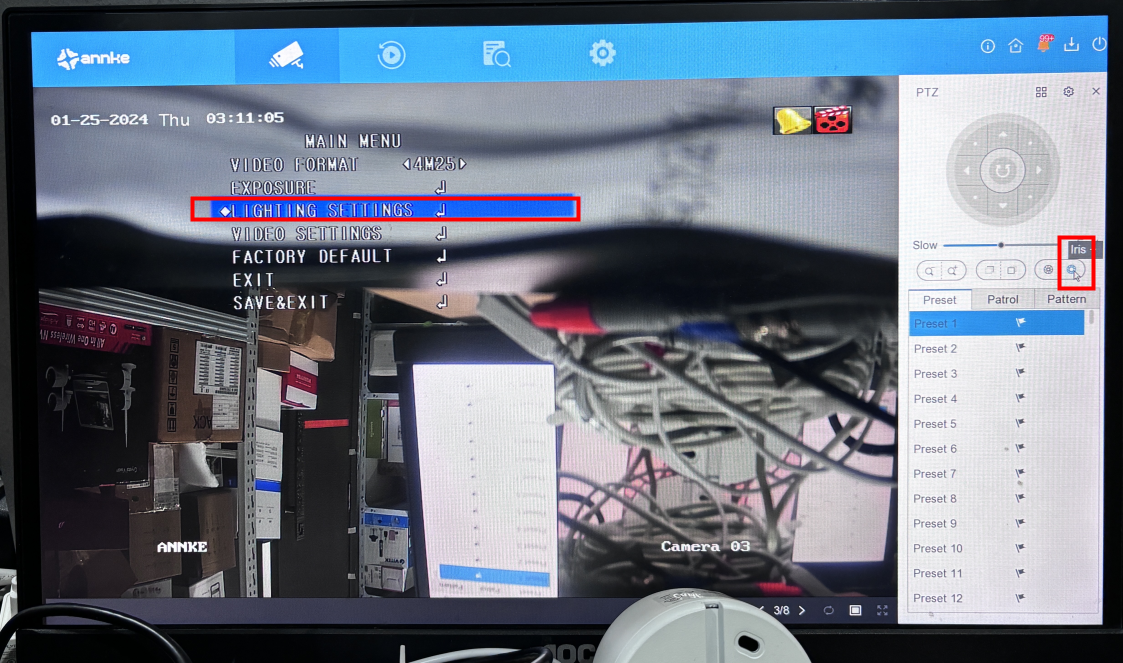

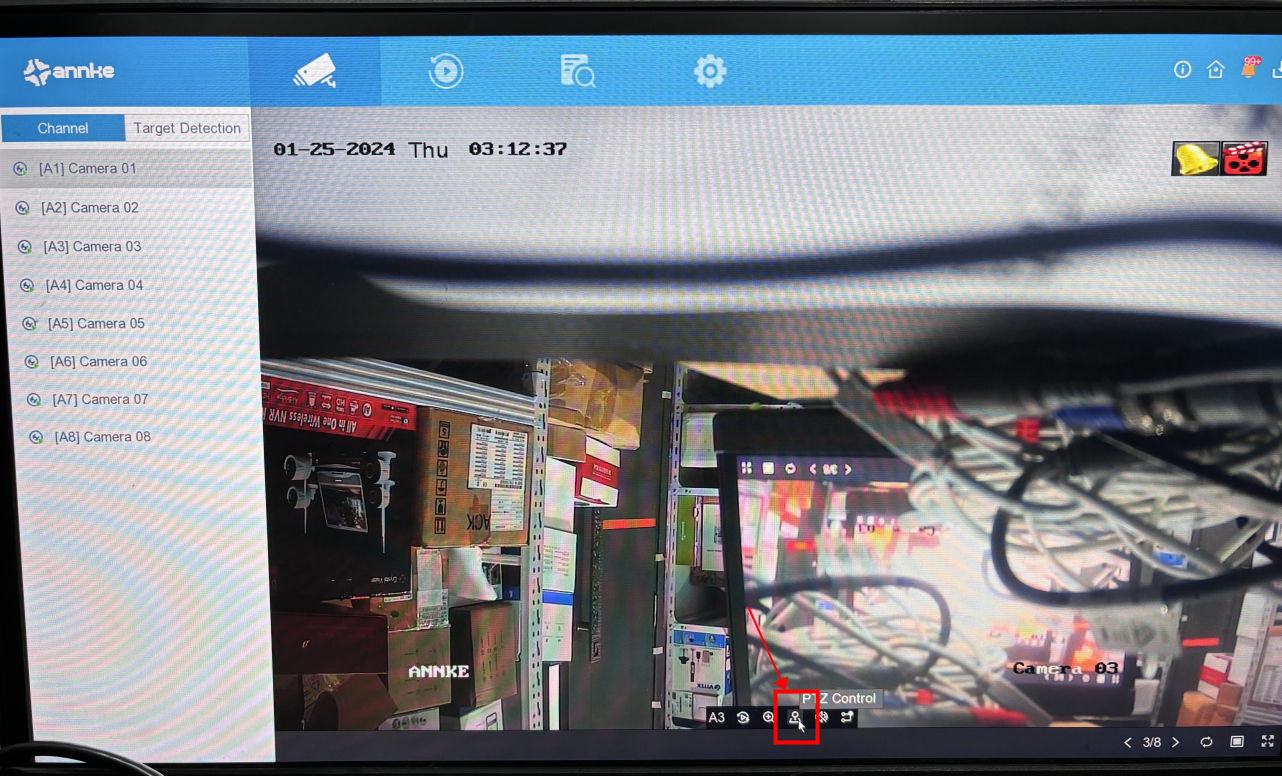

Please follow the pictures below to access the OSD interface of the camera to adjust the light mode:

Mouse click the direction button to control the menu, and mouse click Iris+ represents selected.



Introduction:

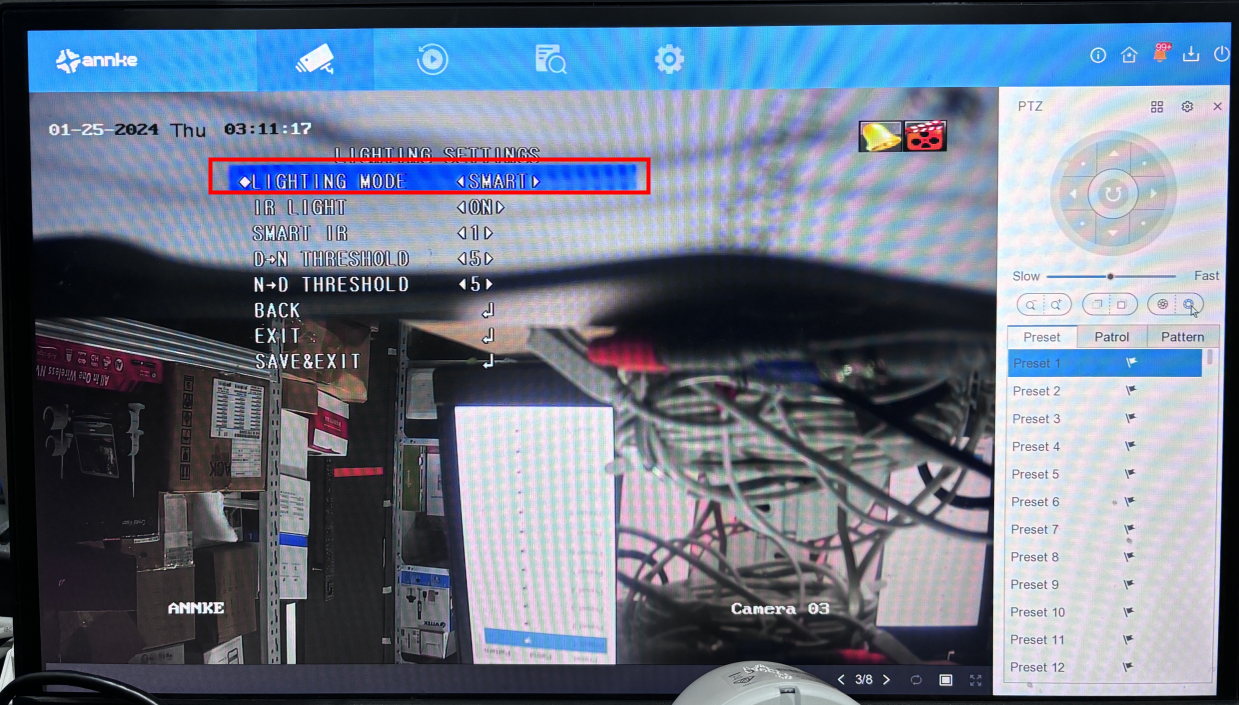

1、The smart light mode:

When enabling the smart mode, the camera maintains infrared illumination until an event triggers color imaging to capture critical details.

Kindly note that our camera is in smart mode by default and the function needs the DVR can support human and vehicle detection.

When there is no vehicle or person, the camera uses only the infrared light

When a vehicle or person appears, the white light is automatically triggered, resulting in vivid color imaging with clear details；
When the vehicle or person leaves, the camera switches back to the infrared light

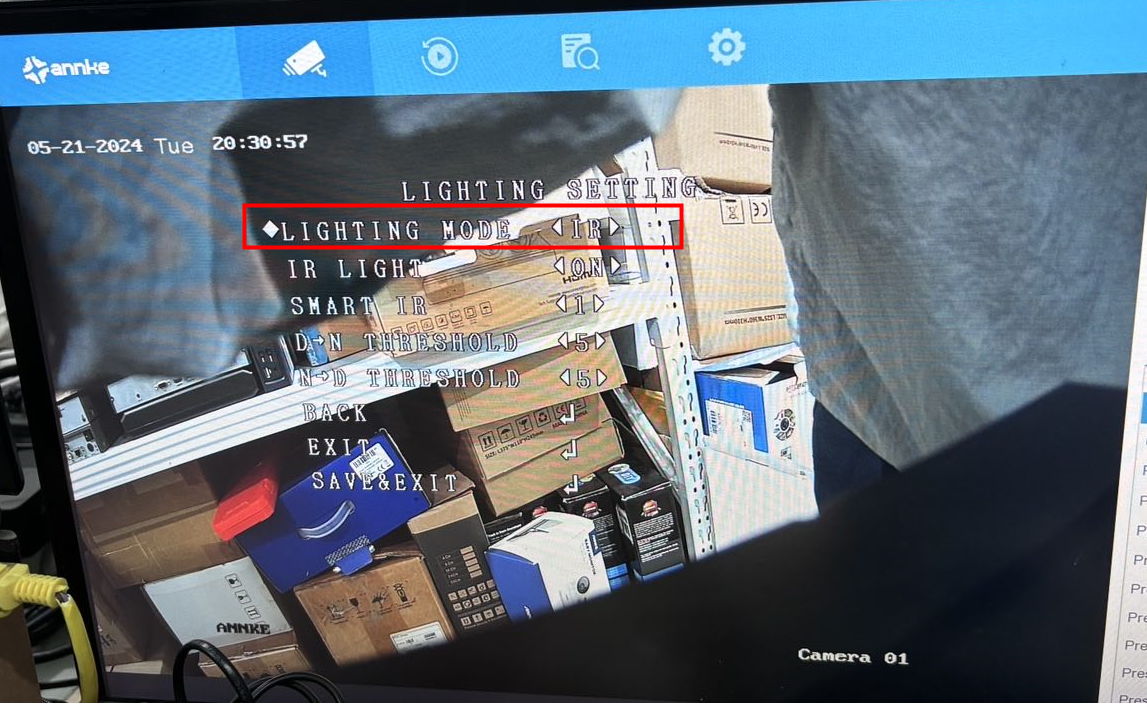

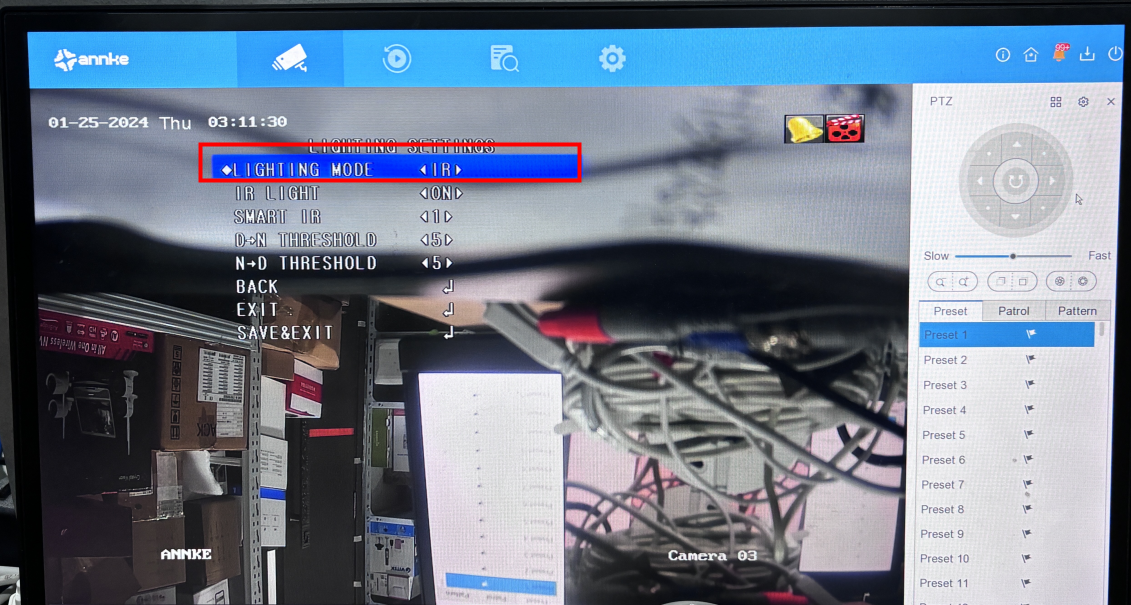

2、The IR supplement light mode

When enabling the IR supplement light mode, the IR light will keep on and the night vision of the camera will be black and white which usually results in loss of details.



Note: Kindly note that some models only have IR light mode and white light mode but don't have the option of smart light mode. In this situation, the IR light mode is the same as the smart light mode.

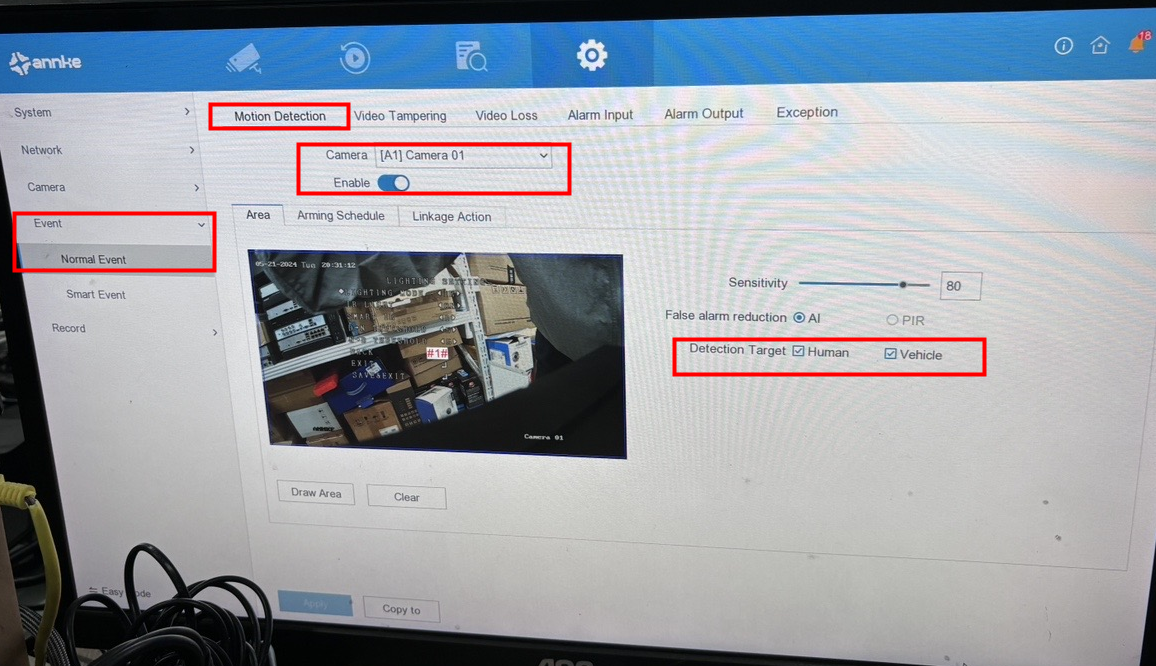

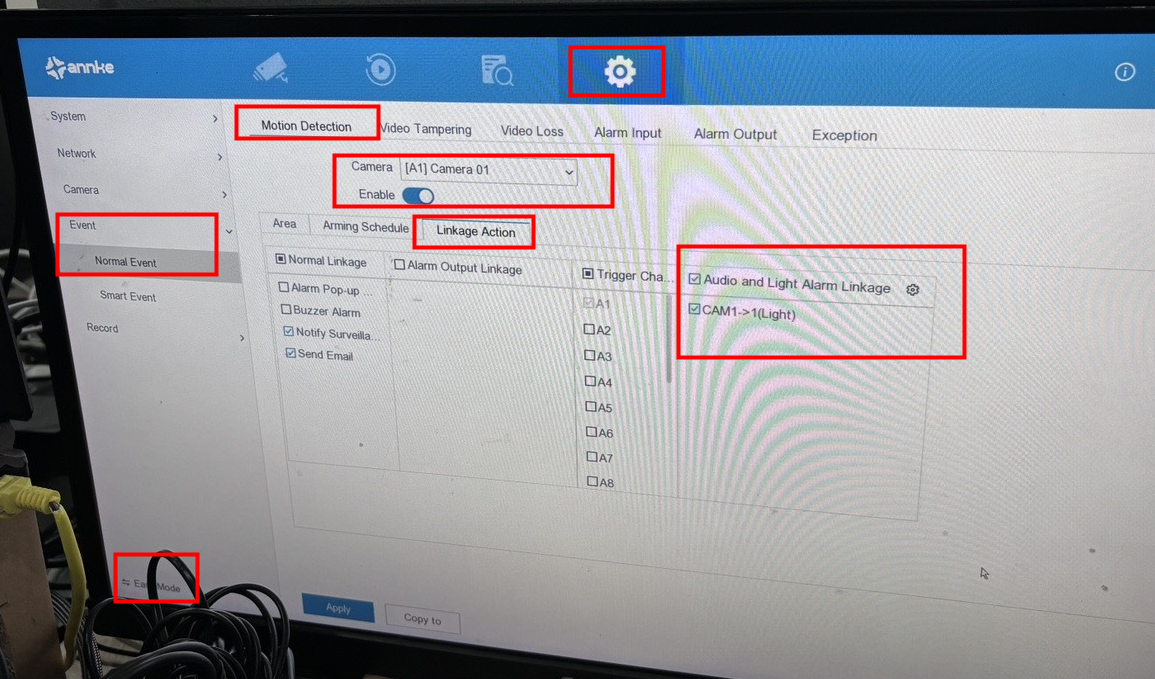

If your camera doesn't have the smart mode, please follow the pictures below to set up the light and then the camera can light up when detecting human and vehicle:

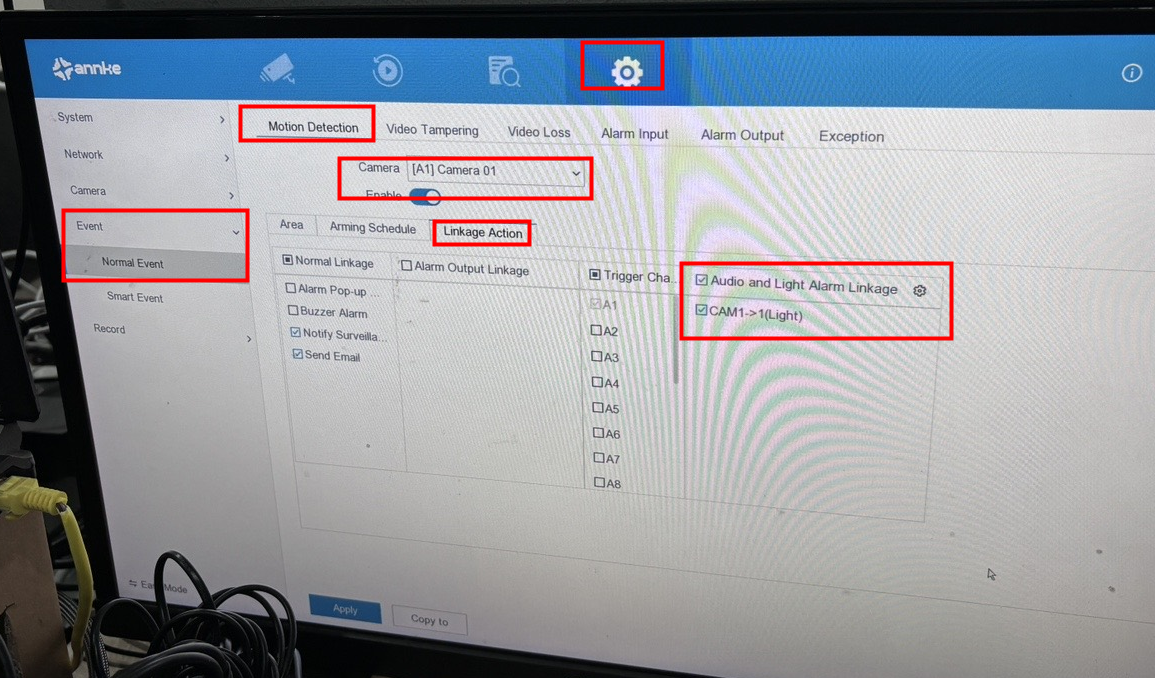

If your camera only has the IR mode and white mode but you only want the IR light on and don't need the white light to alarm, please access motion detection>audio and light alarm linkage to disable the alarm light.

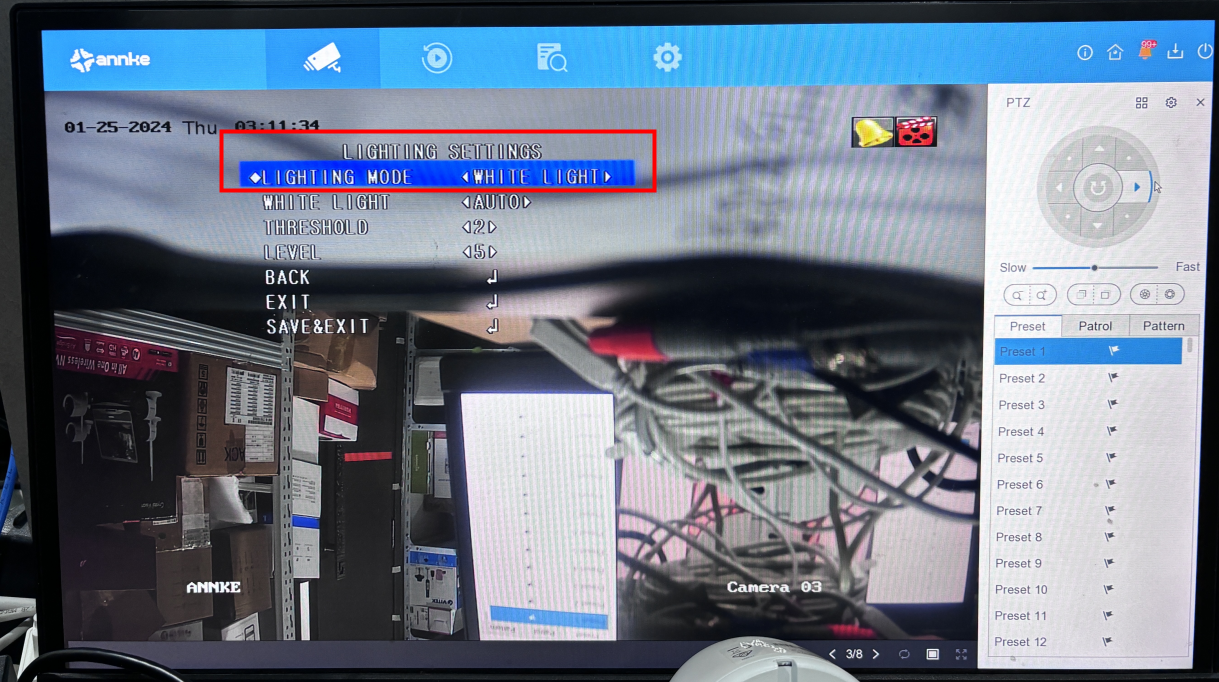

3、The white supplement light mode

When enabling the white supplement light mode, the white light will keep on and the night vision of the camera will be full color.

But when the light is always on, it might be disturbing

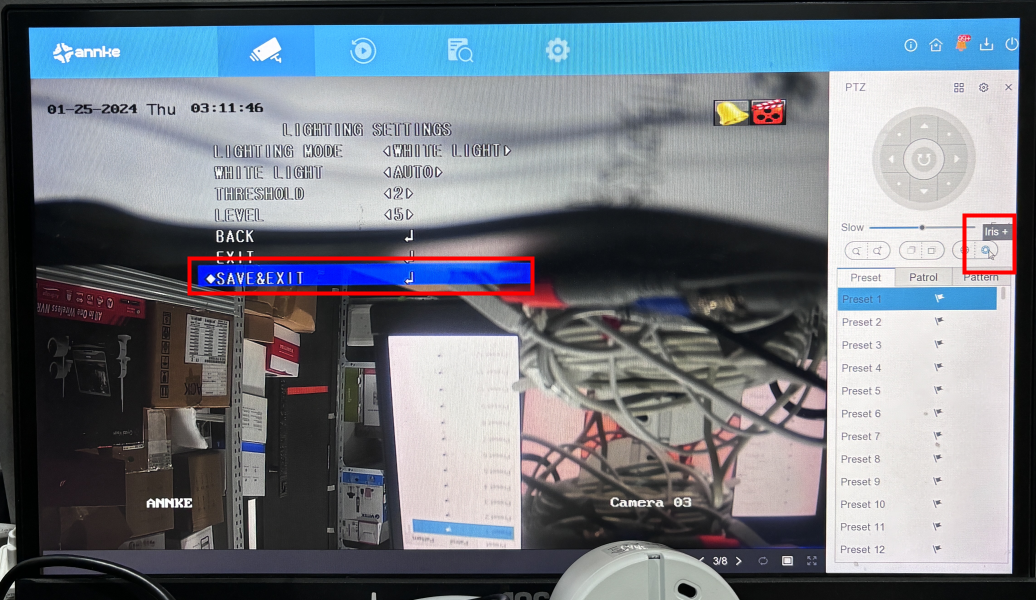

Please click "save and exit" after you set up the light mode you need, or the change can't be saved.



If you have any problem, please contact our technical support at support@annke.com.
