Applies to: I81FB/I81HC/I91BK/I81HB/I51DE/I51DF/I51DK/I51DB/I51DD/I51DJ/I51DL/I51DN/I51DM/I51DP/I91BF/I91BE/I91BG/I91BM/I91BN/I91BL/I41BK/B1200/NC400/CZ400
Purpose:
When using the ANNKE PoE camera without an NVR, most settings on the camera will be done by visiting the camera's Web interface, this also applies to the Push Notification feature.
Catalog
1. Visit the camera on a Web interface
2. Check the camera's network status
3. Set up motion detection for the camera
4. Add the camera to the phone app ANNKE VISION
5. Enable Push function on the app
6. Enable notifications for the added device
7. Adjust Notification Schedule
Steps
1. Visit the camera on a Web interface
Annke Vision -- How to Access the Web interface of ANNKE PoE Cameras via Browser? (Without NVR)
2. Check the camera's network status

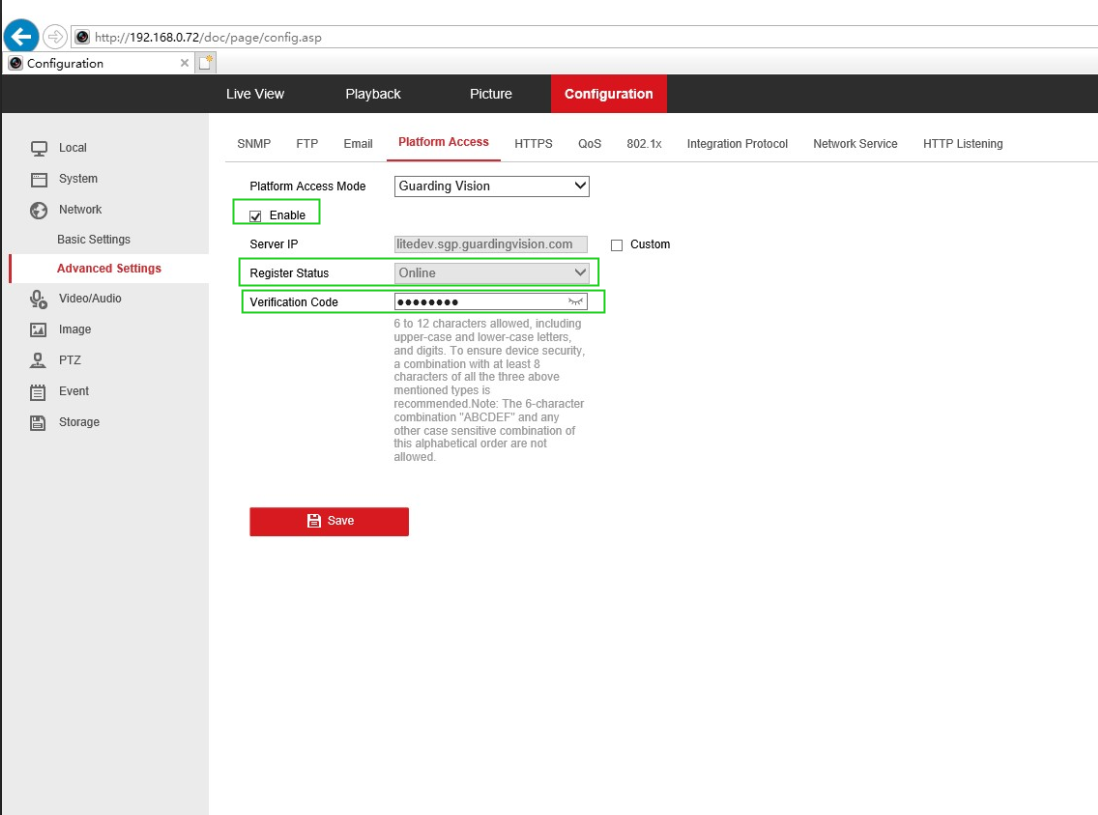

To use the push notification, please make sure the option [Register Status] is 'Online'.
If it says 'Offline', please follow steps 2.1 and 2.2 in the below link to make it Online first.
Annke Vision - How to Connect IP Cameras Alone with ANNKE VISION Phone App (without Using NVR)?
3. Set up motion detection for the camera
On the Web interface, navigate to Configuration-->Event-->Basic Event-->Motion detection.

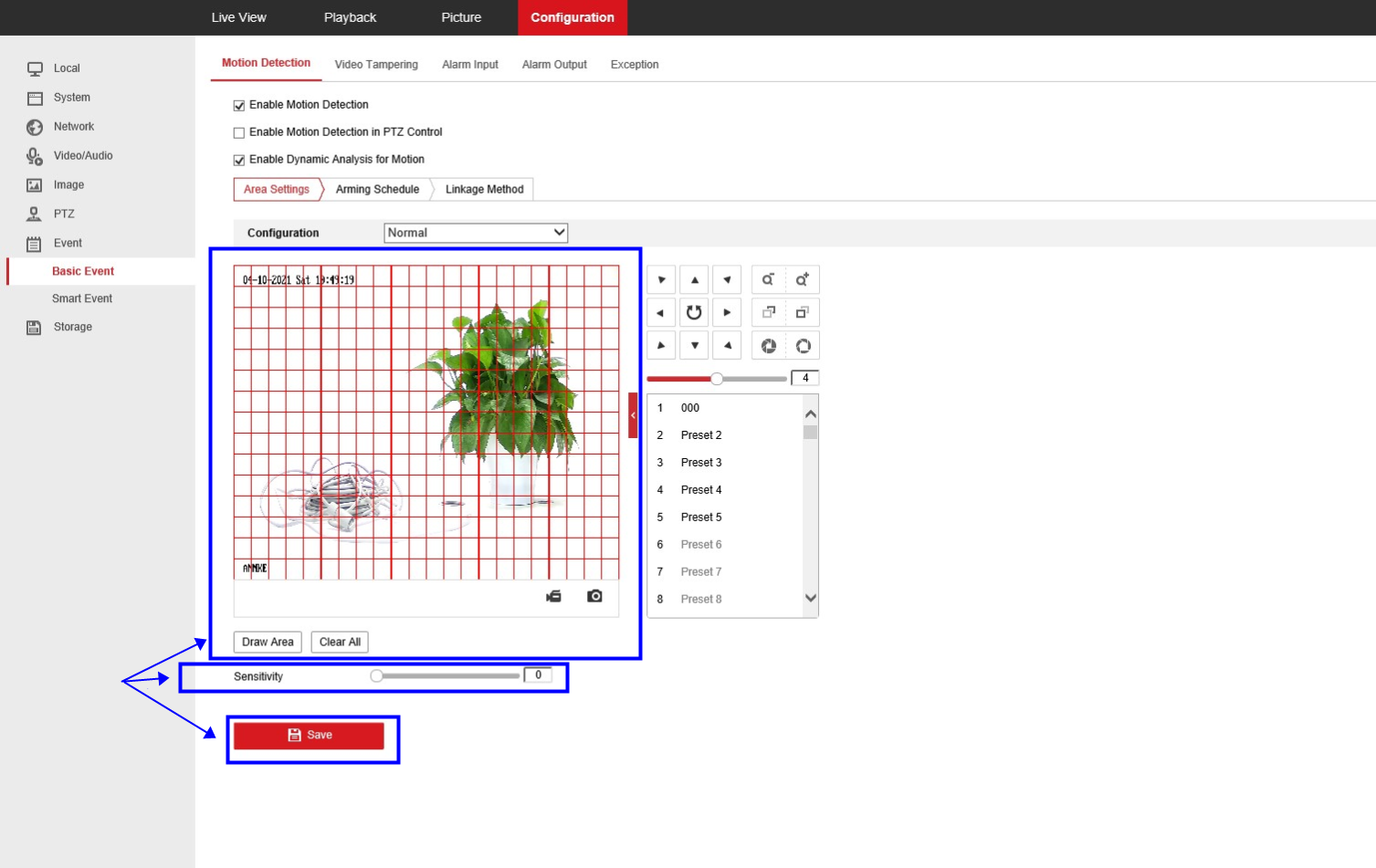

3.1 On the tab Area Settings, check the box Enable motion detection, draw the Area of detection, adjust the sensitivity of detection.

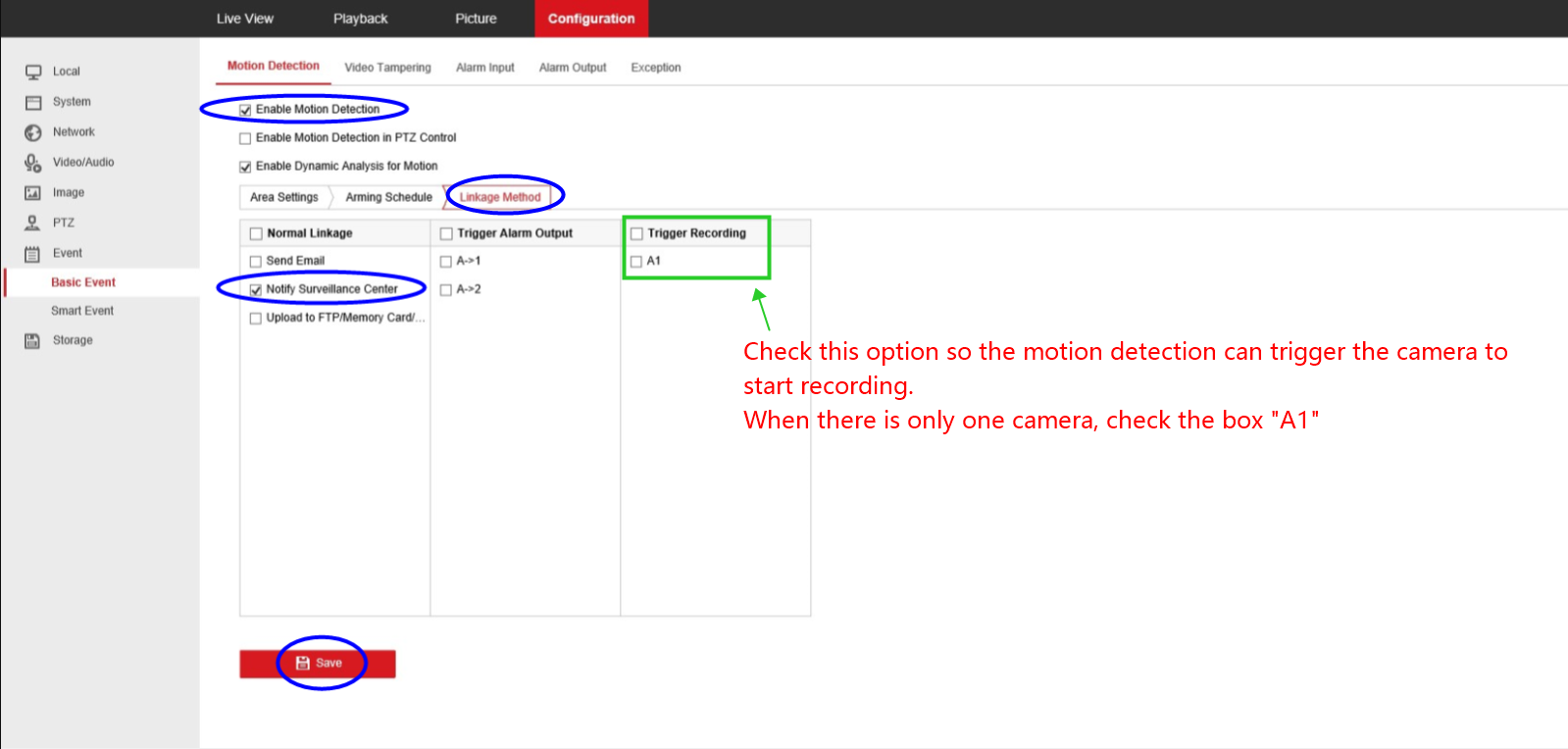

3.2 On the tab Linkage Method, check the box Notify Surveillance Center. Also, check the box "A1" under the option Trigger Recording.
4. Add the camera to the phone app ANNKE VISION
Annke Vision - How to Connect IP Cameras Alone with ANNKE VISION Phone App (without Using NVR)?
5. Enable Push function on ANNKE VISION

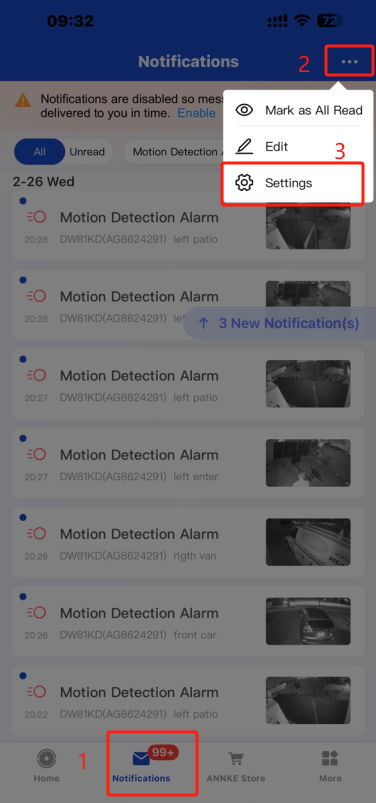

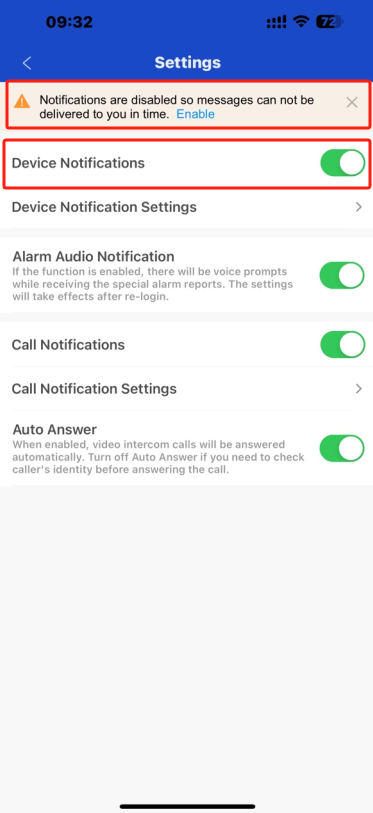

Go to the APP setting to Enable Push Notification:
6. Enable notifications for the added device

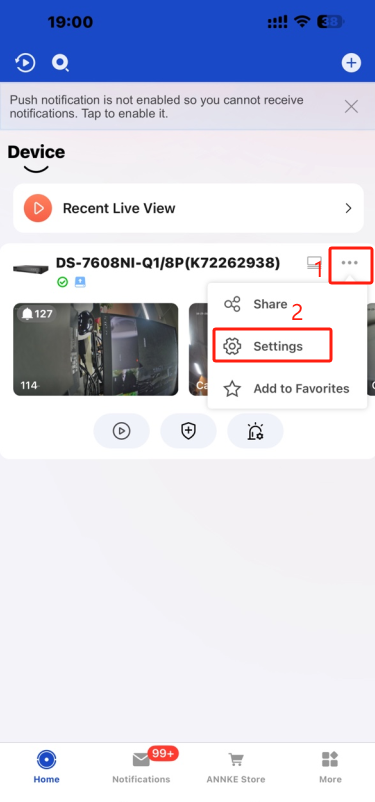

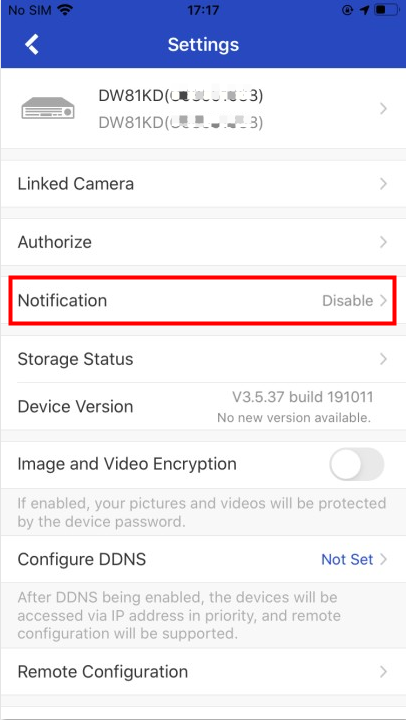

When finishing the APP setting, please connect the APP setting to the exact device. Go to the live view interface and enter the Setting page here:
7. Adjust Notification Schedule

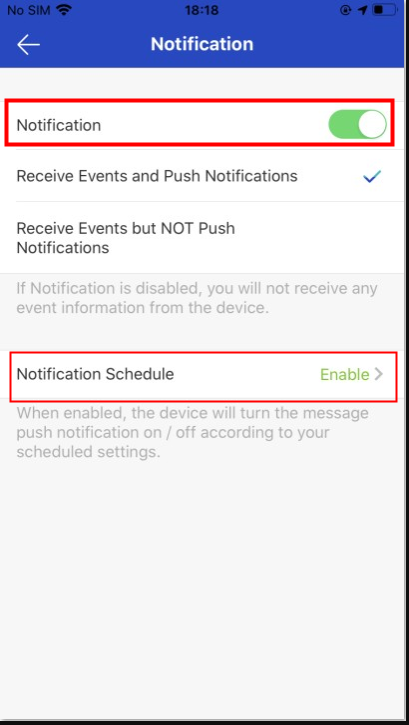

Finally, please go to Alarm Notification to enable it and set up the Notification Schedule:
Note:
For the notification schedule button description:
A. Disable: Default is disabled, disable means you can receive the push always. 24h*7
B. Enable: You can enable it to set your own notification schedule.
Such as Monday: 00:00--08:00 + 15:00--18:00 ( It default is 00:00--23:59, so if you want to add multiple time segments, please edit the default 00:00--23:59 to your first-time segment, and then add the second one. Or you will get an error prompt message: The time segments cannot be overlapped.) And please note that the setting will be effective from the next day.
So if you want to enable the push function always, we suggest you disable the notification schedule, and the push function will be effective immediately.

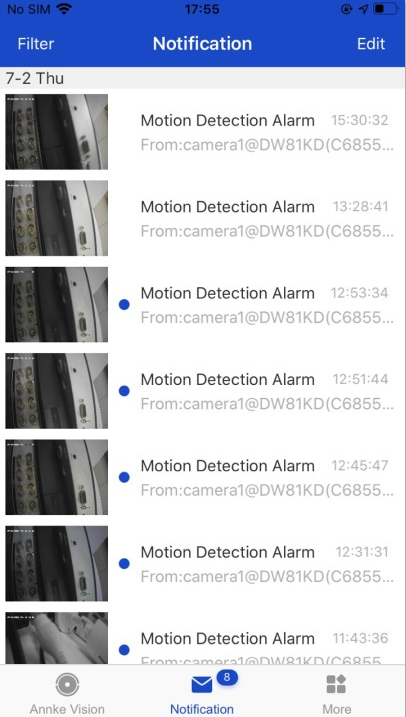

When there is motion detection, your phone will receive a push.

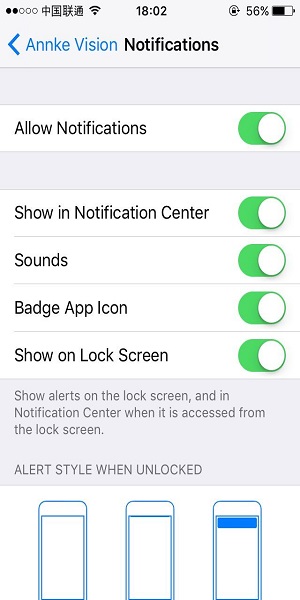

If you cannot receive a push, please double-check to make sure your phone enabled notification for the app Annke Vision.
If you still can not receive the notification, please contact support@annke.com.
